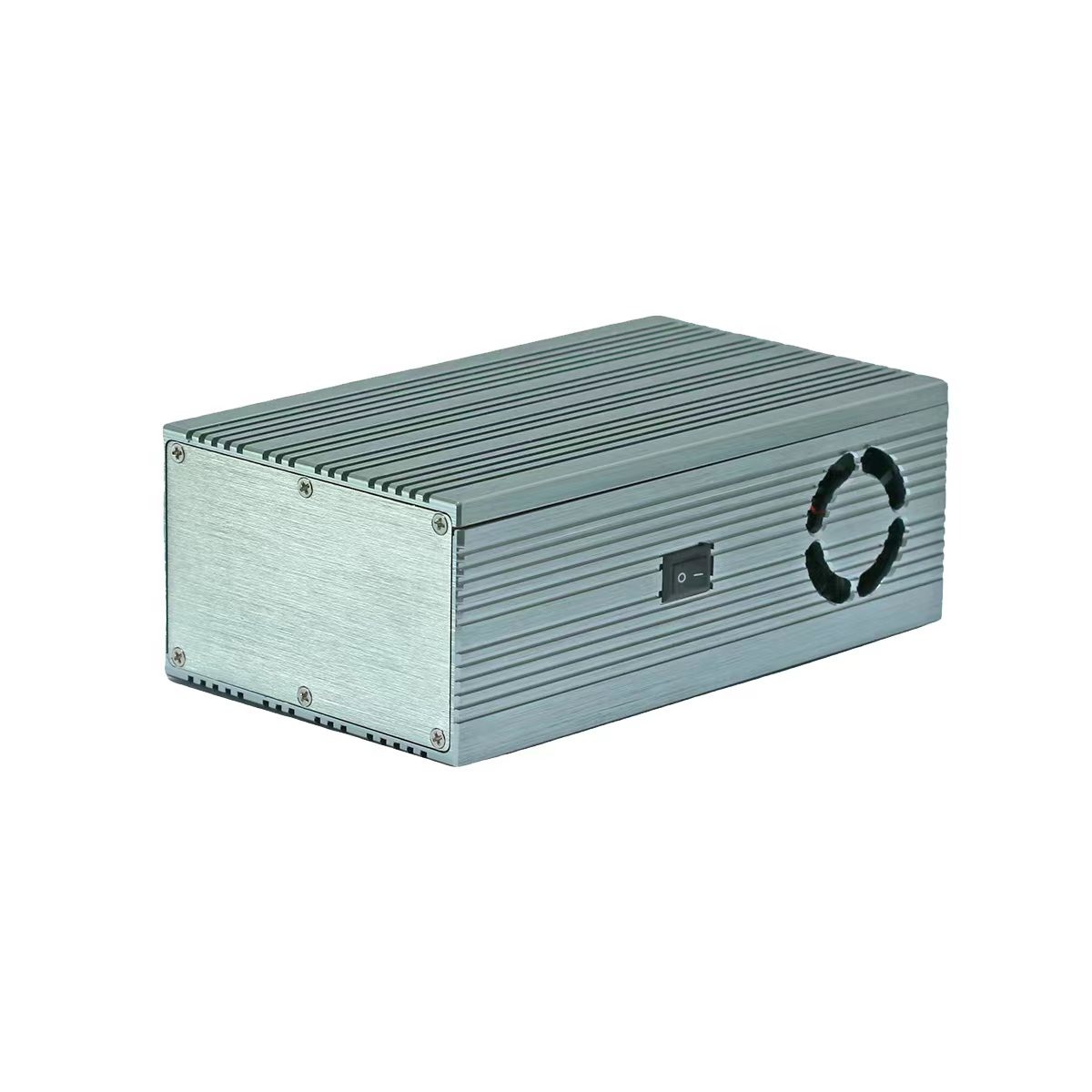

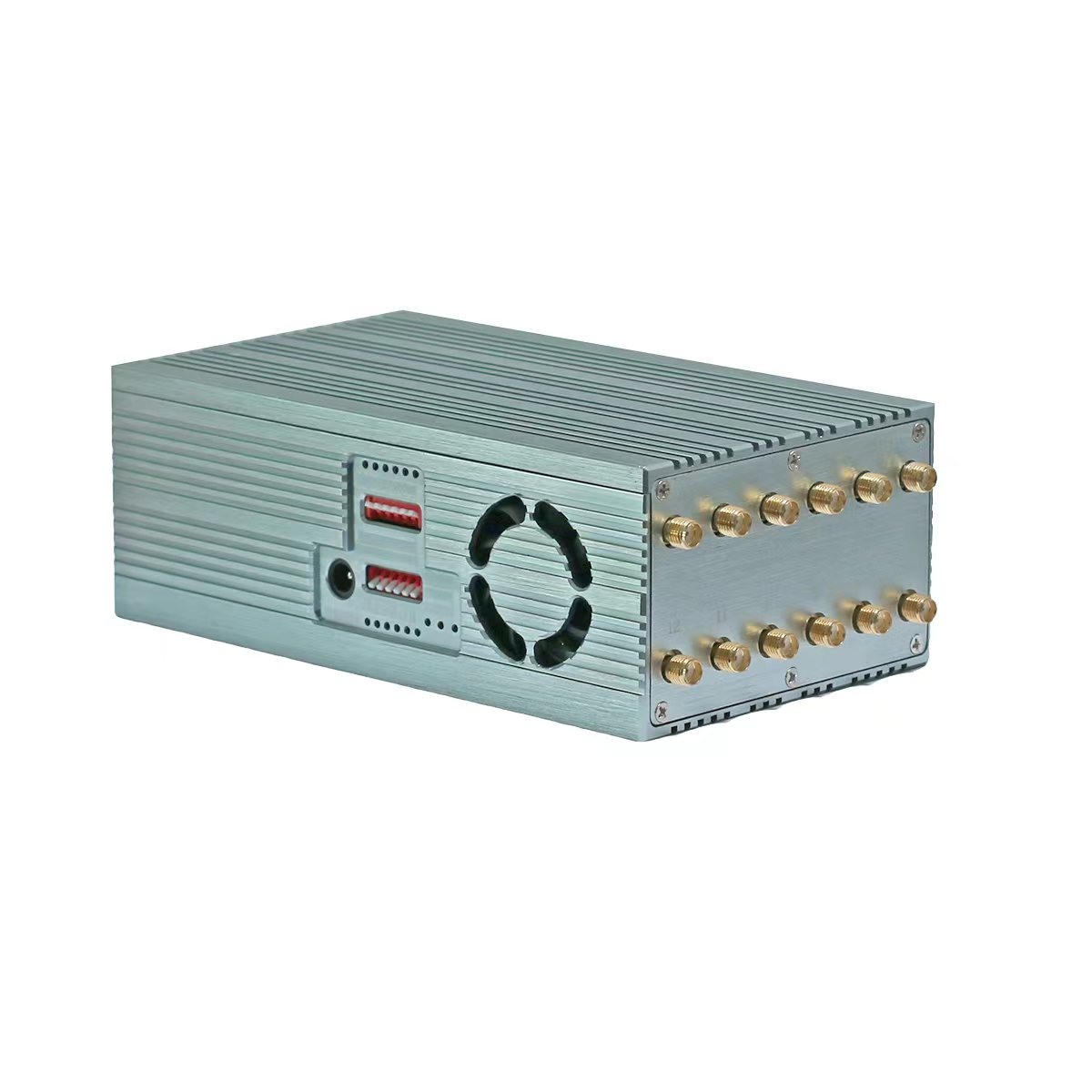

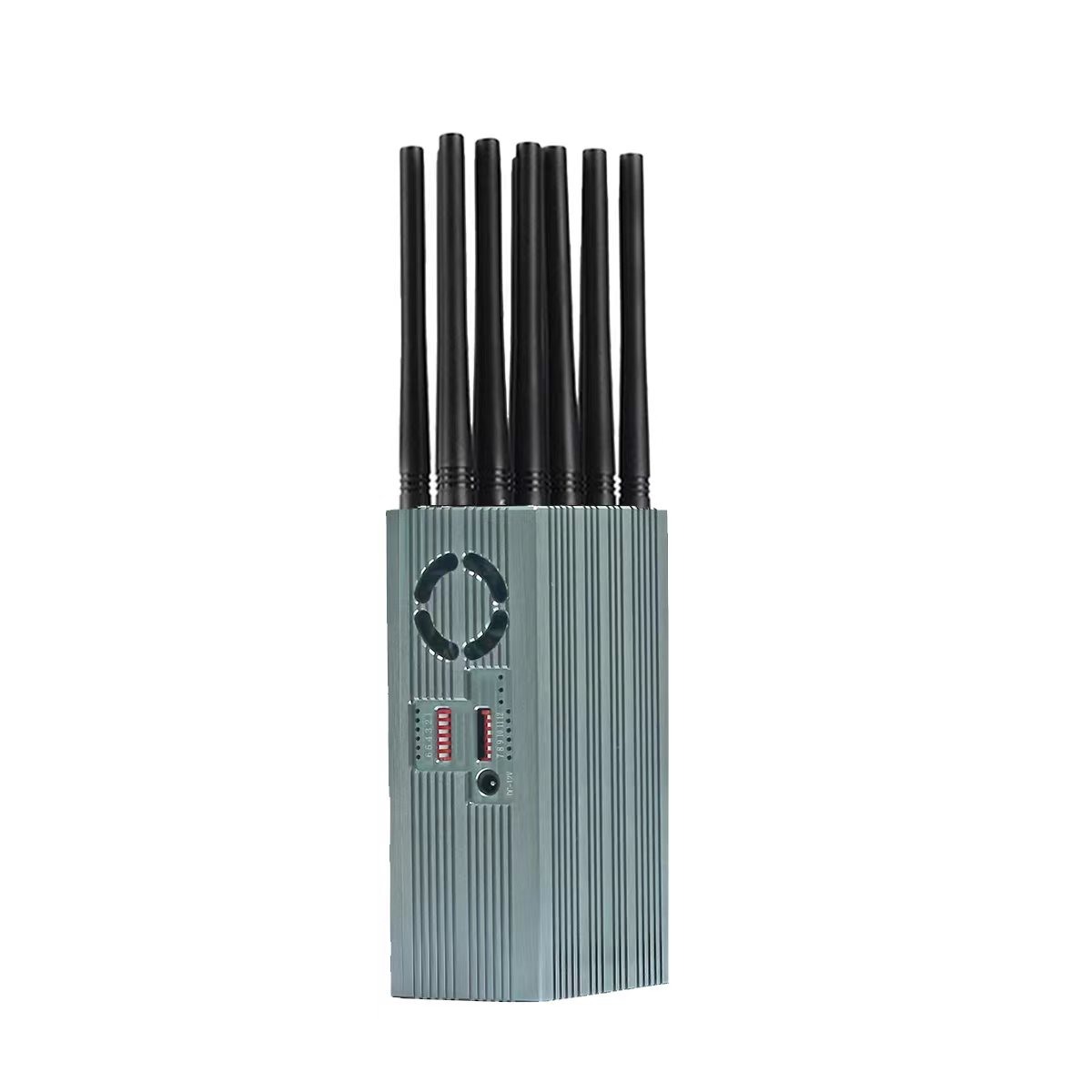

JAX-121P-12 Portable Signal Jammer
Category: Portable Jammer
Model: JAX-121P-12
What to confirm before ordering
JAX-121P-12 portable signal jammer. Total 12W,1 W each band(add antennas gain more than 12Watt). 1:JAX-121P-12:Full Bands Mobile Phone 4G/3G/2G/5G +WiFi2.4G/5.8G+ GPSL1 +L2
Product overview
JAX-121P-12 portable signal jammer. Total 12W,1 W each band(add antennas gain more than 12Watt). 1:JAX-121P-12:Full Bands Mobile Phone 4G/3G/2G/5G +WiFi2.4G/5.8G+ GPSL1 +L2
Specifications
| Model | JAX-121P-12 |
|---|---|
| Jam Signal Type | 1:JAX-121P-12:Full Bands Mobile Phone 4G/3G/2G/5G +WiFi2.4G/5.8G+ GPSL1 +L2 |
| Output Power | Total 12W,1 W each band(add antennas gain more than 12Watt) |
| Jam Radius | 2-20meters |
| Power Supply | AC110-240V to DC12V |
| Cooling System | High efficiency aluminum alloy radiator, Build-in 2x cooling fan |
| Working Time | Built-in battery:7.4V/10000mAh Continue working: more than 2.0+ hours |
| Product Size | 160x 90x 56 mm(not Include Antenna)Length of antenna :133mm Gain:2.0dbi |
| Product Weight | appr.2.0kg |

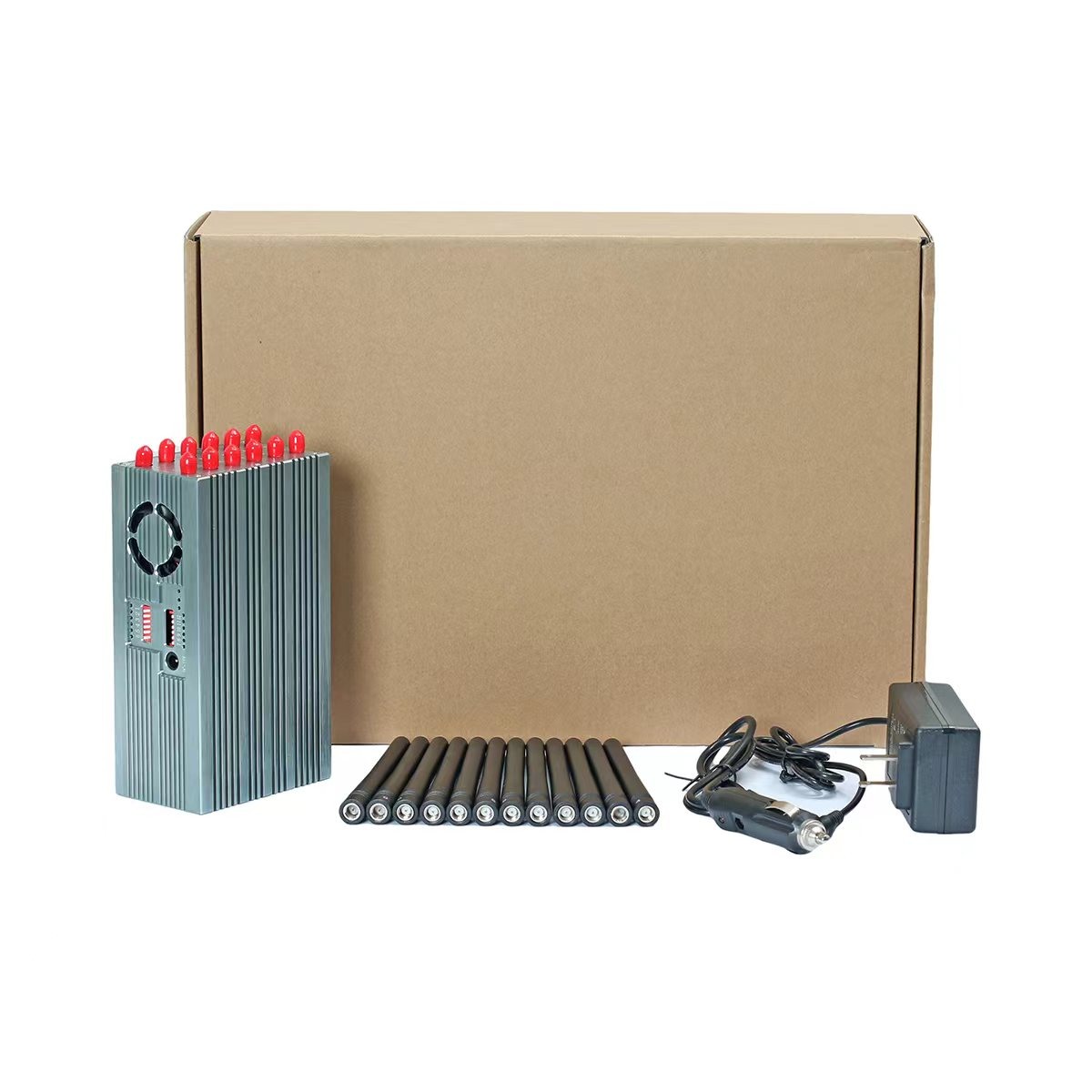

| Package Contents | Jammer Host x 1, AC Charger x1,antenna x12,Car Charger x1 |
Frequency configuration
| Channel | Output port | Frequency range | Average out-putting power |
|---|---|---|---|
| 1 | 4GLTE 700 | 700-803 or 790-862MHz | 30 dBm/1W |
| 2 | CDMA | 851---894 MHz | 30 dBm/1W |
| 3 | GPSL1 | 1570---1615MHz | 30 dBm/1W |
| 4 | Wi-Fi 2.4G | 2400-2500MHz | 30 dBm/1W |
| 5 | 3G | 2110-2170MHz | 30 dBm/1W |
| 6 | 4G2600 or 2300 | 2500-2690 or 2300-2400MHz | 30 dBm/1W |
| 7 | GPSL2 | 1170--1280 MHz | 30 dBm/1W |
| 8 | 5G | 3400---3600MHz | 30 dBm/1W |
| 9 | PCS | 1920---1990MHz | 30 dBm/1W |
| 10 | GSM | 925-960MHz | 30 dBm/1W |
| 11 | DCS | 1805-1880 MHz | 30 dBm/1W |
| 12 | Wi-Fi 5.8G | 5725-5850MHz | 30 dBm/1W |
Coverage and operating time depend on the configuration, battery condition and local signal environment. Please confirm the required frequency configuration and supplied accessories with our team.
