101F-04 4-Channel Backpack Drone Signal Jammer
Category: Portable Jammer
Model: 101F-04
What to confirm before ordering
101F-04 (HX-W-04) backpack drone signal jammer with 4 channels, 200 W total output and a rechargeable battery.
Product overview
101F-04 (HX-W-04) backpack drone signal jammer with 4 channels, 200 W total output and a rechargeable battery.
Specifications
| Model | 101F-04 |
|---|---|
| Product type | Backpack drone signal jammer |
| Document model | HX-W-04 |
| Channels | 4 |
| Total output power | 200 W |
| Power per channel | 50 W |
| Body dimensions | 49 x 35 x 19 cm |
| Weight | 16.8 kg |
| Power input | AC 100-240 V or DC 24 V |
| Battery | DC 24 V, listed as 30 A in source; capacity unit requires confirmation |
| Operating time | Approximately 1 hour |
| Power consumption | Less than 800 W |
| Operating temperature | -20 to +75 deg C |
| Relative humidity | 35-95% |

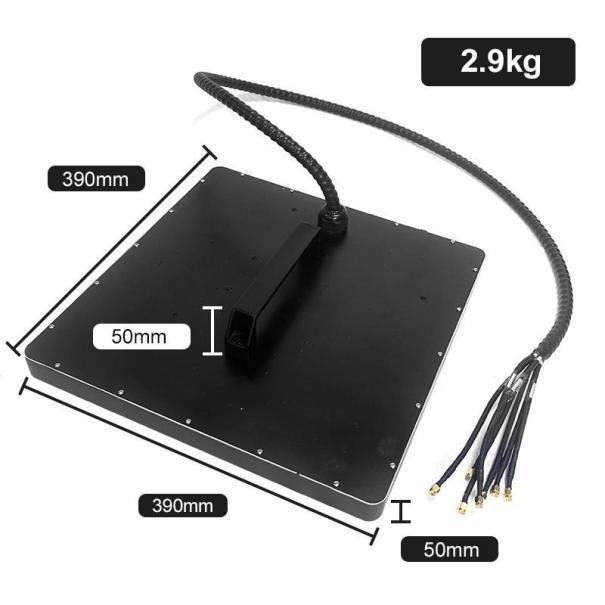

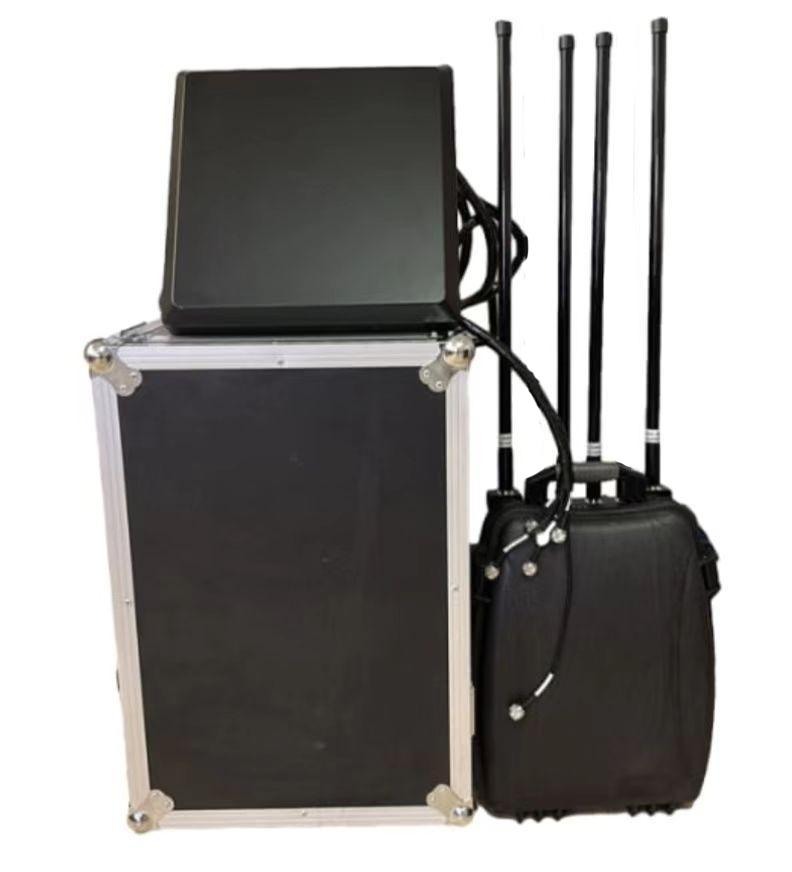

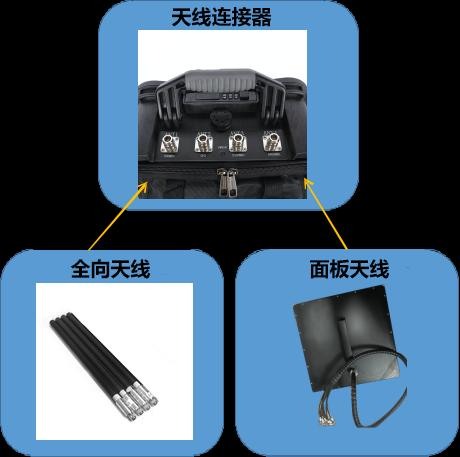

| Package | Backpack main unit, 4 omnidirectional antennas, panel antenna, AC and DC chargers |
Frequency configuration
| Channel | Frequency | Output power |
|---|---|---|
| GPS L1 | 1560-1620 MHz | 50 W |
| Wi-Fi 2.4 GHz | 2400-2485 MHz | 50 W |
| Wi-Fi 5.8 GHz | 5725-5850 MHz | 50 W |
| 900 MHz | 920-960 MHz | 50 W |
Configuration notes
The supplied document gives inconsistent panel-antenna ranges. Confirm coverage, antenna configuration and battery capacity for the intended configuration.
Coverage and operating time depend on the configuration, battery condition and local signal environment. Please confirm the required frequency configuration and supplied accessories with our team.
