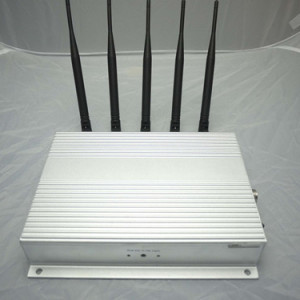

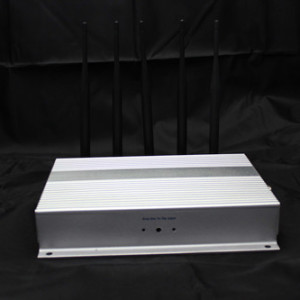

8341BA Fully functional Mobile Phone Jammerl:
- Determine the installation position:
installation, such as the temporary use, can put the host in mesa, such as regular use, can be used with the installation of the hanging bar mounted on the wall.Installation position from the ground 180-250 .
Cm effect is better.
- Using introduction:
The machine works by the power control.
*The default boot, shutdown:, turning on the power supply device, the maximum transmission power equipment at this time;Shut off the power, the equipment stop work.
*Each can be individually adjust power size, can also close the single way alone.
*Use the remote control switch, the switch on the baffle to remote files (remote), use the remote control switch machine.
-
The parameters of 8341BA for different types and different plkaces:
Ba 8341 3 g enhanced 8341 , Ba + mobile wifi, 4G 8341 Ba Asia, European 4 g ba 8341, 4G 8341 ba America
fan-out |
Working frequency |
The average output power |
Channel output power |
CDMA |
851-894MHz |
35dBm |
8dBm/30KHz(min) |
GSM |
925-960MHz |
35dBm |
5dBm/30KHz(min) |
DCS/PHS |
1805-1990MHz |
33dBm |
2dBm/30KHz(min) |
3G1 |
2010-2025MHZ |
33dBm |
0dBm/30KHz(min) |
3G |
2110-2170MHZ |
33dBm |
0dBm/30KHz(min) |
Weight: 3.0 Kg size (width x height x deep) : 210 * 50 * 210 mm |
|
The power supply:AC220V-DC5V Block radius: 2-50 m @ sight operator network signal |
