Specifications

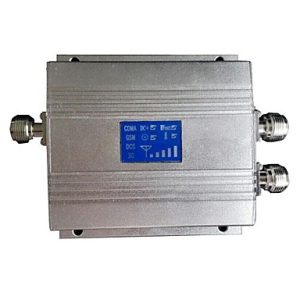

Repeater
Frequency range (Mhz) UL824-849mhz DL869-894mhz
Gain (dB) Uplink≥70?Downlink≥75
Bandwidth 25Mhz
Ripple in Band ≤8dB
Output Power (Bm) ≥26dBm±3dBm
Noise figure (dB) 4.5db
Transmission delay (μs) ≤0.5 μs
RF Connector N -Female
Coverage area (M) 100-2000?
I/O impedence (Ω) 50 Ω
Installation Type Wall Installation
Environment Conditions -10oC-50oC
Power Supply DC 12V
Dimensions (LxWxH) (CM) 19.2*13*2
Gross Weight (KG) 0.85
General
What’s in the box 1 x User Manual – English, 1* Power Supply, 1 x Mobile Signal Repeater
