Specifications

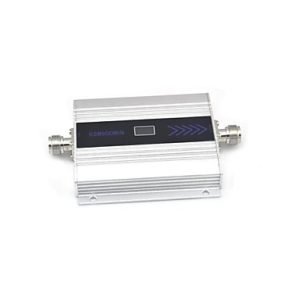

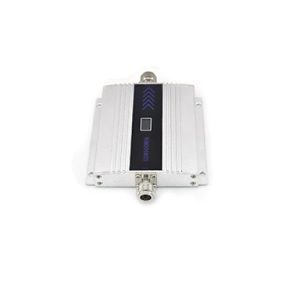

Repeater
Frequency range (Mhz)     UL 890-915Mhz DL 935-960Mhz
Gain (dB)     Up Link: 55Db ±3db,Donw Link: 60Db ±3db
Output Power (Bm)     +17dBm/ ±3DBM
RF Connector     N -Female
Coverage area (M)     100 square meters
I/O impedence (Ω)     50 Ω
Environment Conditions     -10oC-50oC
Power Supply     DC 5V
Dimensions (LxWxH) (CM)     14x10x2
Gross Weight (KG)     0.4
Outdoor Antenna
Usage type     Yagi Antenna
Frequency range (Mhz)     800-900mhz
Gain (dB)     13dBi
Impedance(Ω)     50
Connector Type     N Female
Operating Temperature     -40 to +65°C
Dimensions (LxWxH) (CM)     50x16x7
Gross Weight (KG)     0.85
Indoor Antenna
Usage type     Omni Antenna
Frequency range (Mhz)     800-900mhz
Gain (dB)     4dbi
Impedance(Ω)     50
Connector Type     N Female
Radome material     Plastic
Operating Temperature     -40 to +65°C
Dimensions (LxWxH) (CM)     21x2x2
Gross Weight (KG)     0,05
Cable
Impedance(Ω)     75ohm
Material     Plastic
Length (FT)     32.8
Gross Weight (KG)     0.5
General

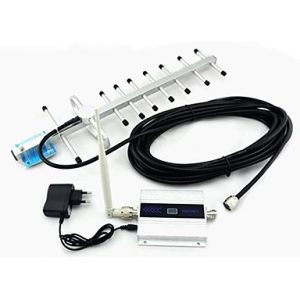

What’s in the box     1 x Mobile Signal Repeater, 1 x User Manual – English, 1* Power Supply, 1 x Cable, 1 x Indoor Antenna, 1 x Outdoor Antenna
