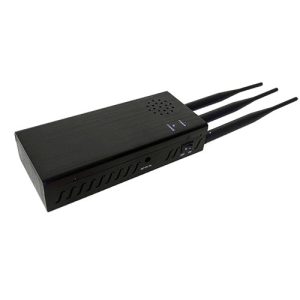

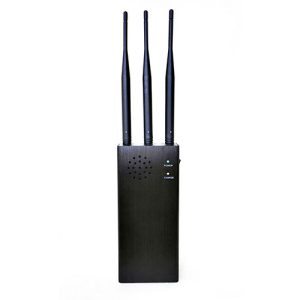

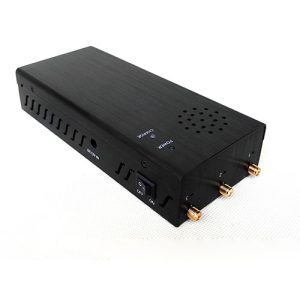

High Power Portable RC Jammer

MODEL :RC121A3

Total Output Power 10W

One of our the best high power portable models with 3 bands to jamming Car Remote Controls on 315Mhz, 433Mhz and 868Mhz



Additional Special Features

• Jamming Range: Radius 30-100 meters
• Working time:    3 Hours,  Battery?Ni-Mh battery 8000mA H
• Good cooling system with heat sink and fan inside
• Can support use while battery charging, But don’t suggest use like that always.
• Support Powered by car cigarette charger
• Power supply:    AC100-240V Plug and DC12V Car Charger



Technical Specifications

RF Characteristics
Total Output Power	Up to 10W
Power Supply	AC100-240V and 12V Car Charger
Modules Per Unit	3
Antennas	3 Omni Directional Antennas   SMA-Type Connector
Jamming Frequency Range
Frequency Band And   RF Output Power	1. 315 MHz 4W 2. 433 MHz 4W 3. 868MHz 2W   Total: 10W
Physical Data
Dimensions	177.5 x76.5×36.5mm
Weight	Approx. 1Kg
Environment of operation
Operating Temp	-20ºC – +50ºC
Humidity	5% – 95%

*Specifications are subject to change without prior notice



RC 315 433 868MHz Portable Jammer



User Manual

RC121A3

Notice:

1. Do not power on if antenna s are not connected.
2. The functional coverage is greatly affected if antennas are not installed

correctly. Do ensure the antennas are properly connected before usage.

3. When power on, keep away from computer, notebook PC, television, audio

and AM/FM radio to prevent interferences.

4. The normal operational temperature is about 6 5 ° C. If the temperature is

higher than the above, turn off the power immediately and contact local

agent for help.

5. Its functional coverage will depends on the location and strength of the

ambient mobile phone base stations.

6. Placing the device on higher position for better coverage. 2 meters height

is recommended.

7. The Ni-MH rechargeable battery has estimated 500 times recharge cycles.

Please contact the local agent to replace battery if it is not rechargeable.

Accessories:

Main unit x 1pcs

Power adapter x 1pcs

Car charger x 1pcs

Omni antenna x 5pcs

Default:

Frequency  bands	Frequency range	Output Power
Band 1	315MHz	4W
Band 2	433 MHz	4W
Band 3	868 MHz	2W
Power supply: AC Charge (AC220V-DC12V)  & Car Charge (DC12V)   Shielding Radius:  (5-100) meters@-75dBm  still depends on the strength signal in given area.
Dimension: (width, height, length)  177.5 x76.5×36.5mm and not include antennas

 Install steps:

1. Please charge battery at least 5hours before first-time use.

(Turn off power switch before charging. Charging indicator shall lights on RED when charging the battery , the indicator will changed to Green while finished.)

2.Fix all antennasby the numbers of port

3. Turn ONthe device ,the power led light

and each band indictors lights will be on

of each band will turn on, too .

4. Turn OFFthe device When you had

finished use or need to charge.

Notice: Don’t suggest using while charging.

( The operational temperature may too high about 7 5 ° C normally.)
