GSM900 Signal Boosters
Category: Signal Repeater
Model: 9923
GSM900 Signal Boosters
Repeater Function
Signal repeater is an effective equipment which designed to pick up the outdoor reception from service provider’s cell phone tower and amplify it.
Suit for
Meeting rooms, a small supermarket, small shopping malls, offices, small public areas, bars, cafes, dance halls, cafes, fitness clubs, leisure and entertainment, elevators, home, office, luxury yachts, private car, public security system, large-scale plant.
This auction is for a brand new 60dB amplifier kit for 200 square meters
Specification
| Model Number | ||||
| Specification | ||||
| Frequency
range |
Up link | GSM 890-915 | ||
| Downlink | GSM 925-960 | |||
| Gain(dB) | GSM Up link | 60 | ||
| GSM Downlink | 65 | |||
| Gain adjustable range | MGC≥30dB | |||
| Output power(dBm) | ≥20 | |||
| Pass band ripple | GSM | 4dB | ||
| Guard band rejection | GSM | (BW-60dB)≤42 MHz (BW-70dB)≤45 MHz | ||
| I/O impedance | 50V/N Connector | |||
| I/O return loss | ≤-10dB | |||
| Noise igure | ≤-8dB | |||
| Intermodulation attenuation (Po=13dBm) | ≥40dBc | |||
| Transmission Delay | ≤0.5us | |||
| Ambient temperature | -10??50? | |||
| Power supply | AC110?220V±10% 45?55Hz | |||
| SIze | 190mm*125mm*25mm | |||
| Product weight | 0.58kg | |||
| Reliability | To zhe GB6993-86 standard | |||
| Electromasnetic compatibility | To zhe ETS300 694-4 standard | |||
Characteristic
- Fully integrated 900 MHz antenna system
• Powerful amplifier enables up to + 85 dB of signal gain including cable loss
• Intelligent signal processing and real time adaptive operation
• Automatically adjusts power levels as needed to ensure a consistent coverage footprint
• Reprogrammable (in the field) enabling spectrum or carrier reconfigurations as needed
• Auto-Trac LED diagnostics displays aid install and operation
• Patented algorithms and adaptive processing ensure our products will not interfere with other wireless frequencies or radio devices
The package contains:

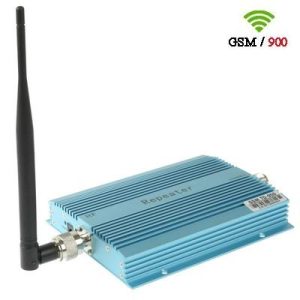

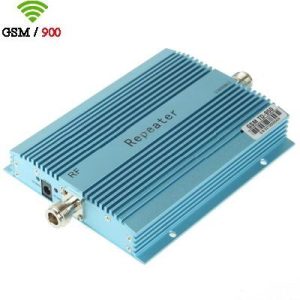

65dB GSM Cellular Phone Signal Amplifier

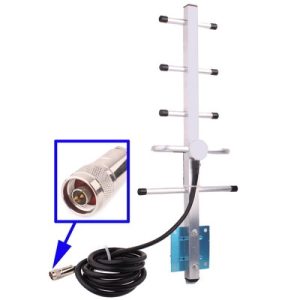

9dB outdoor antenna
3dB indoor antenna
10m cable
mounting accessories
AC power supply
user manual
| Whole Package Weight | 2KG |
| Whole Package Size | 550x250x180mm(L x W x D) |
