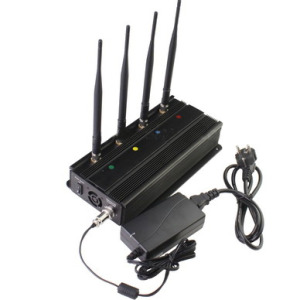

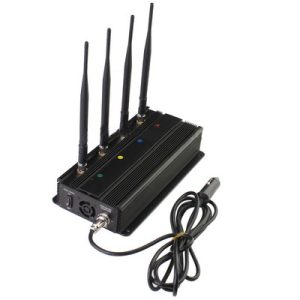

Vehicle Mounted Type block CDMA/GSM/DCS/3G. Cellular Phone Jammer
Vehicle Mounted Type block CDMA/GSM/DCS/3G. Cellular Phone Jammer
To can be mounted on the car directly.
| Specification | |||
| Output Band | Frequency Band | Average Output Power | Channel Output Power |
| CDMA800 | 850-894MHz | 33dBm | 3 watt |
| GSM900 | 925-960MHz | 33dBm | 3 watt |
| DCS/PHS/GSM1800-1900 | 1805-1990MHz | 33dBm | 2 watt |
| 3G | 2110-2170MHz | 33dBm | 2 watt |
| Total Power | 10 watt | ||
| Power Supply | AC:110/220 V DC 12V, Electric Current: 3A | ||
| Power Consumption | 36 watt | ||
| Shielding Radius | Up to 40 meters, signal strength <= -75dbm | ||
| Device Weight | 1.5 KG | ||
| Packing Weight | 2.5Kg | ||
| Size | 26.5*11.5*5 CM | ||
| Complete accessories | Omni antennas, Power adaptor, Car charger | ||
| Advantages |
|
||
Applications
Class rooms and seminar halls , meeting rooms and board rooms, Private offices, Bank, Bus and Vehicles, VIP and privacy-sensitive scenarios’ etc
Easy operation as followed
- Before turn on the power, Connect the antennae to the corresponding bands firstly by the mark both on the antennae and device.
- Choose to install the jammer in a stationary occasions like meeting room, testing room , Army camp, hospital ,and so on.
- Install the jammer on the vehicle .just plug the car adaptor in your car cigarette.
Notes
1) The shielding range of the device will be determined by the local signal strength. In different situation, it will be with different performance.
2) Please try to put the device in a higher position while it is working .It will be better. The suggested height is about 2M.To avoid the loss of function of the device, please try to avoid the device placed on or the metal materials.
3) Do not put the device near computers, notebook computers, televisions, stereos, radios and so on, in order not to make some interference for these equipments.
4) Try to put the jammer away from metal materials to make sure the working condition won’t be affected.
