Specifications

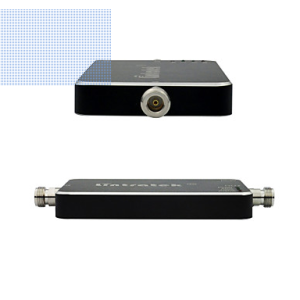

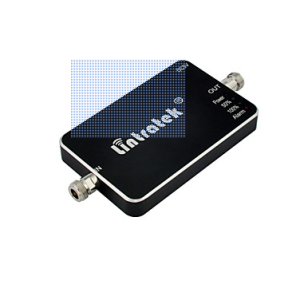

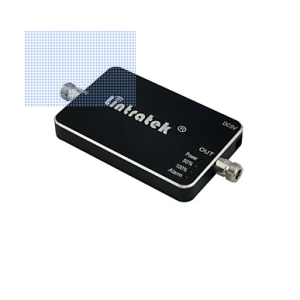

Repeater
Frequency range (Mhz) UL1710-1785mhz DL1805-1880mhz
Gain (dB) 65dBi
Bandwidth 75M
Output Power (Bm) 20dBm
RF Connector N -Female
Coverage area (M) 50~150sqm
I/O impedence (Ω) 50 Ω
Installation Type Wall Installation
Environment Conditions -10oC-50oC
Power Supply DC 5V
Dimensions (LxWxH) (CM) 24*14*8
Gross Weight (KG) 0.7kg
Outdoor Antenna
Usage type Yagi Antenna
Frequency range (Mhz) 900/1800/3G tri band
Gain (dB) 13dBi
Connector Type N Female
Dimensions (LxWxH) (CM) 50*14*6
Gross Weight (KG) 0.3kg
Indoor Antenna
Usage type Omni Antenna
Frequency range (Mhz) 900/1800/3G tri band
Gain (dB) 3dBi
3dB beamwidth, H-plane (°) 360
3dB beamwidth, E-plane (°) 360
Dimensions (LxWxH) (CM) 18*9
Gross Weight (KG) 0.3kg
Cable
Impedance(Ω) 50ohm
Material Copper
Length (FT) 10m
Gross Weight (KG) 0.6kg
General
What’s in the box 1 x User Manual – English, 1* Power Supply, 1 x Cable, 1 x Indoor Antenna, 1 x Outdoor Antenna, 1 x Mobile Signal Repeater
