Specifications

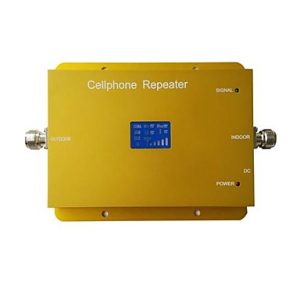

Repeater
Frequency range (Mhz) GSM/3G 890-915/925-960mhz 1920-1980/2110-2170
Gain (dB) Uplink≥60?Downlink≥65
Output Power (Bm) ≥27dBm±3dBm
Noise figure (dB) 4.5db
Transmission delay (μs) ≤0.5 μs
RF Connector N -Female
Coverage area (M) 500 square meters
I/O impedence (Ω) 50 Ω
Environment Conditions -10oC-50oC
Power Supply DC 12V
Dimensions (LxWxH) (CM) 19.2*13*2
Outdoor Antenna
Gain (dB) 10

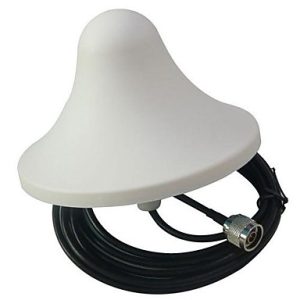

Indoor Antenna
Usage type Omni Antenna
Gain (dB) 5
Cable
Impedance(Ω) 50ohm
Length (FT) 50
General
What’s in the box 1 x Indoor Antenna, 1 x Outdoor Antenna, 1 x Mobile Signal Repeater, 1 x User Manual – English, 1* Power Supply, 1 x Cable
