Specifications

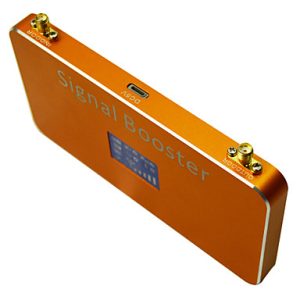

Repeater
Frequency range (Mhz) UL824-849mhz DL869-894mhz
Gain (dB) Uplink≥65?Downlink≥70
Bandwidth 25Mhz
Output Power (Bm) ≥25dBm±3dBm
Noise figure (dB) 4.5db
Transmission delay (μs) ≤0.5 μs
RF Connector SMA
Coverage area (M) 100-1000?
I/O impedence (Ω) 50 Ω
Installation Type Wall Installation
Environment Conditions -10oC-50oC
Power Supply DC 5V
Dimensions (LxWxH) (CM) 15*8.9*1.3
Gross Weight (KG) 0.285
Outdoor Antenna
Usage type Vehicle Use Sucker Antenna
Frequency range (Mhz) 800-900mhz
Gain (dB) 5
Impedance(Ω) 50
Lightning protection DC grounded
Operating Temperature -40 to +65°C
Gross Weight (KG) 0.34
Indoor Antenna
Usage type Whip Antenna
Frequency range (Mhz) 800-900mhz
Gain (dB) 3
Impedance(Ω) 50
Lightning protection DC grounded
Operating Temperature -40 to +65°C
Dimensions (LxWxH) (CM) 20.3*1.3*1.3
Gross Weight (KG) 0.02
Cable
Impedance(Ω) 50ohm
Material Plastic
Length (FT) 32.8
General
What’s in the box 1 x User Manual – English, 1* Power Supply, 1 x Indoor Antenna, 1 x Outdoor Antenna, 1 x Mobile Signal Repeater
