New Arrival CDMA PCS Signal Repeater GSM 850Mhz UMTS 1900Mhz Dual Band Amplifier Full Kits for USA, Mexico, Canada


Model Number :SBT097
Category: .
Description

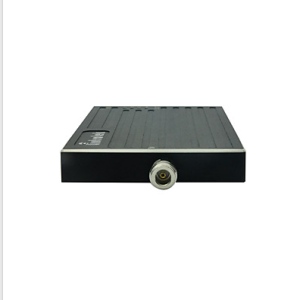

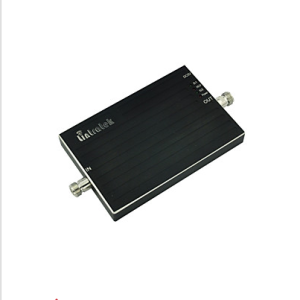

Repeater
Frequency range (Mhz) CDMA/PCS 824-849/869-894MHz 1850-1910/1930-1990mhz
Gain (dB) 65dBi
Bandwidth 25M+60M
Output Power (Bm) 20dBm
RF Connector N -Female
Coverage area (M) 100~200
I/O impedence (Ω) 50 Ω
Installation Type Wall Installation
Environment Conditions -10oC-50oC
Power Supply DC 5V
Dimensions (LxWxH) (CM) 24*14*8
Gross Weight (KG) 0.8kg

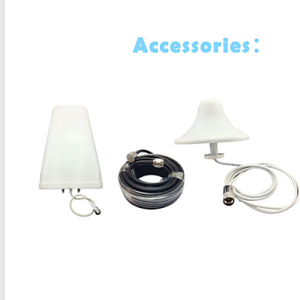

Outdoor Antenna
Usage type LAP Antenna
Frequency range (Mhz) 900/1800/3G tri band
Gain (dB) 10dBi
Connector Type N Female
Radome material Plastic
Operating Temperature -40 to +65°C
Dimensions (LxWxH) (CM) 33*22*7
Gross Weight (KG) 0.8kg
Indoor Antenna
Usage type Omni Antenna
Frequency range (Mhz) 900/1800/3G tri band
Gain (dB) 3dBi
3dB beamwidth, H-plane (°) 360
3dB beamwidth, E-plane (°) 360
Operating Temperature -40 to +65°C
Gross Weight (KG) 0.2kg
Cable
Impedance(Ω) 50ohm
Material Copper
Length (FT) 10m
Gross Weight (KG) 0.6kg
General
What’s in the box 1* Power Supply, 1 x Cable, 1 x Indoor Antenna, 1 x Outdoor Antenna, 1 x Mobile Signal Repeater, 1 x User Manual – English
