Mobile Phones Signal Boosters (DCS1800)


model number 9928

Description

Mobile Phones Signal Boosters (DCS1800)

Repeater Function

Signal repeater is an effective equipment which designed to pick up the outdoor reception from service provider’s cell phone tower and amplify it.

Suit for

Meeting rooms, a small supermarket, small shopping malls, offices, small public areas, bars, cafes, dance halls, cafes, fitness clubs, leisure and entertainment, elevators, home, office, luxury yachts, private car, public security system, large-scale plant.

Specification

Model Number
Specification


Frequency range

Up link DCS1710-1785(MHz)
Downlink DCS1805-1880(MHz)


Gain(dB)

DCS Up link 53
DCS Downlink 58
Gain adjustable range MGC≥30dB
Output power(dBm) ≥17


Pass band ripple

DCS 15dB


Guard band rejection

DCS (BW-58dB)≤104MHz   (BW-70dB)≤107 MHz
I/O impedance 50V/N Connector
I/O return loss ≤-10dB
Noise igure ≤-8dB
Intermodulation attenuation (Po=13dBm) ≥40dBc
Transmission Delay ≤0.5us
Ambient temperature -10℃~50℃
Power supply AC110~220V±10%  45~55Hz
SIze 195mm*120mm*23mm
Product weight 0.62kg
Reliability To zhe GB6993-86 standard
Electromasnetic compatibility To zhe ETS300 694-4 standard



Characteristic

  • Fully integrated 1800 MHz antenna system
    • Powerful amplifier enables up to + 85 dB of signal gain including cable loss
    • Intelligent signal processing and real time adaptive operation
    • Automatically adjusts power levels as needed to ensure a consistent coverage footprint
    • Reprogrammable (in the field) enabling spectrum or carrier reconfigurations as needed
    • Auto-Trac LED diagnostics displays aid install and operation
    • Patented algorithms and adaptive processing ensure our products will not interfere with other wireless frequencies or radio devices
    • Approved by CE

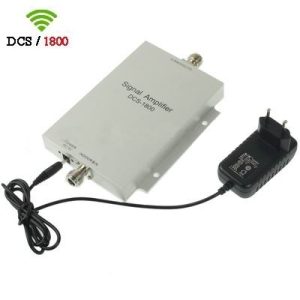

55dB DCS Cellular Phone Signal Amplifier

13dB outdoor antenna

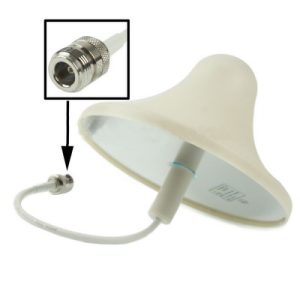

3dB indoor antenna

indoor Coaxial Cable-2m

outdoor Coaxial Cable-10m

mounting accessories

AC power supply

user manual



Whole Package Weight 2.7KG
Whole Package Size 450x220x190mm(L x W x D)
