Specifications

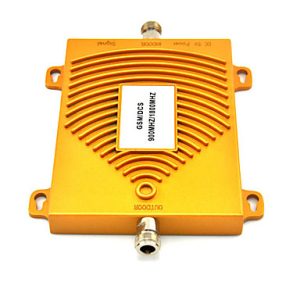

Repeater
Frequency range (Mhz) GSM/DCS 890-915/925-960mhz 1710-1785/1805-1880
Gain (dB) Up Link:55±3 Db,Down Link:60±3 Db
Output Power (Bm) 17
RF Connector N -Female
I/O impedence (Ω) 50 Ω
Environment Conditions -10oC-50oC
Power Supply DC 5V
Dimensions (LxWxH) (CM) 19.5 x 15 x 2.5
Gross Weight (KG) 0.615

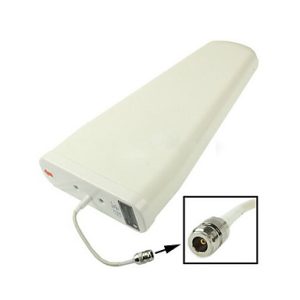

Outdoor Antenna
Frequency range (Mhz) 900/1800/3G tri band
Gain (dB) 10/11
Impedance(Ω) 50
Lightning protection DC grounded
Connector Type N Female
Radome material Plastic
Operating Temperature -40 to +65°C
Indoor Antenna
Frequency range (Mhz) 900/1800/3G tri band
Gain (dB) 3
Impedance(Ω) 50
Lightning protection DC grounded
Connector Type N Female
Operating Temperature -40 to +65°C
Cable
Impedance(Ω) 75ohm
General

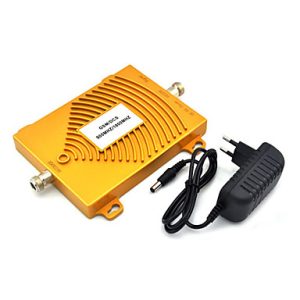

What’s in the box 1 x User Manual – English, 1* Power Supply, 1 x Indoor Antenna, 1 x Outdoor Antenna, 1 x Mobile Signal Repeater
