Specifications

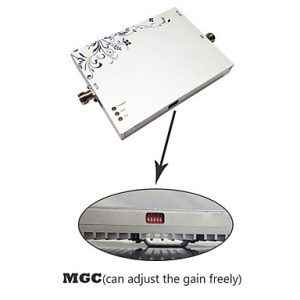

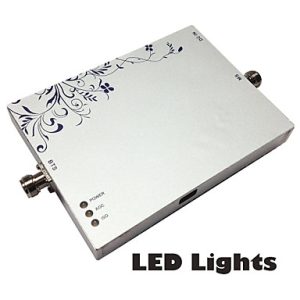

Repeater
Frequency range (Mhz) UL 890-915Mhz DL 935-960Mhz

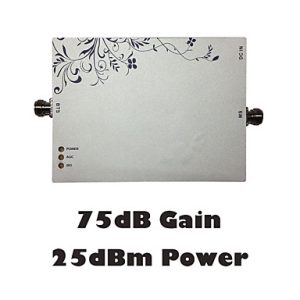

Gain (dB) 75db
Output Power (Bm) 25dBm
Transmission delay (μs) ≤0.5 μs
RF Connector N -Female
Coverage area (M) 300~1000sqm
I/O impedence (Ω) 50 Ω
Installation Type Wall Installation
Environment Conditions -10oC-50oC
Power Supply DC 5V
Dimensions (LxWxH) (CM) 17*13*2.6
Gross Weight (KG) 1.3KG

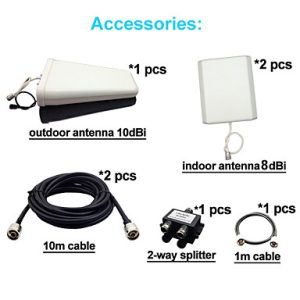

Outdoor Antenna
Usage type LAP Antenna
Frequency range (Mhz) 900/1800/3G tri band
Gain (dB) 10db
3dB beamwidth, H-plane (°) 60
3dB beamwidth, E-plane (°) 60
Lightning protection DC grounded
Connector Type N Female
Radome material Plastic
Operating Temperature -40 to +65°C
Dimensions (LxWxH) (CM) 33×21.5×6.5
Gross Weight (KG) 0.8KG
Indoor Antenna
Usage type Panel Antenna
Frequency range (Mhz) 900/1800/3G tri band
Gain (dB) 8db
3dB beamwidth, H-plane (°) 60
3dB beamwidth, E-plane (°) 60
Lightning protection DC grounded
Connector Type N Female
Radome material Plastic
Operating Temperature -40 to +65°C
Dimensions (LxWxH) (CM) 22.5*18.5*5
Gross Weight (KG) 0.5KG
Cable
Impedance(Ω) 50ohm
Material Copper
Length (FT) 10 Meters
Gross Weight (KG) 0.6KG
Splitter
Frequency range (Mhz) 900-2100mhz
Frequency division type 1 to 2
Material Metal
Gross Weight (KG) 0.3
