Specifications

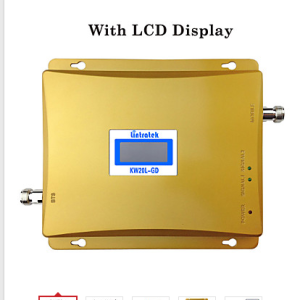

Repeater
Frequency range (Mhz) GSM/DCS 890-915/925-960mhz 1710-1785/1805-1880
Gain (dB) 65dbi
Bandwidth 25M+75M
Output Power (Bm) 20dbm

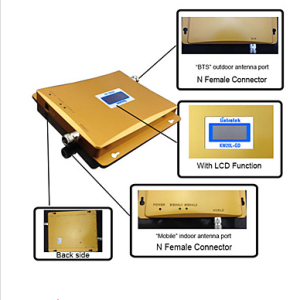

RF Connector N -Female
Coverage area (M) 200~1000 sqm
Port VSWR less than 3
I/O impedence (Ω) 50 Ω
Installation Type Wall Installation
Environment Conditions -10oC-50oC
Power Supply DC 12V
Dimensions (LxWxH) (CM) 20*18*2
Gross Weight (KG) 1.2 kg

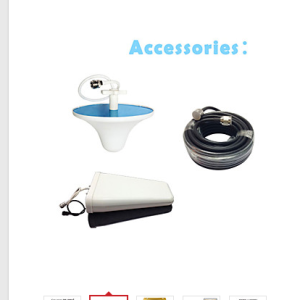

Outdoor Antenna
Usage type LAP Antenna
Frequency range (Mhz) 900/1800mhz dual band
Gain (dB) 10dbi
3dB beamwidth, H-plane (°) 60
3dB beamwidth, E-plane (°) 60
Connector Type N Female
Dimensions (LxWxH) (CM) 33*22*7
Gross Weight (KG) 0.8 kg
Indoor Antenna
Usage type Omni Antenna
Frequency range (Mhz) 900/1800mhz dual band
Gain (dB) 3dbi
3dB beamwidth, H-plane (°) 360
3dB beamwidth, E-plane (°) 360
Dimensions (LxWxH) (CM) 18*9
Gross Weight (KG) 0.3kg
Cable
Impedance(Ω) 50ohm
Material Plastic
Length (FT) 10m Cable
Gross Weight (KG) 0.6 kg
General
What’s in the box 1 x Mobile Signal Repeater, 1 x User Manual – English, 1* Power Supply, 1 x Cable, 1 x Indoor Antenna, 1 x Outdoor Antenna
