Key Features
LCD Display !!!

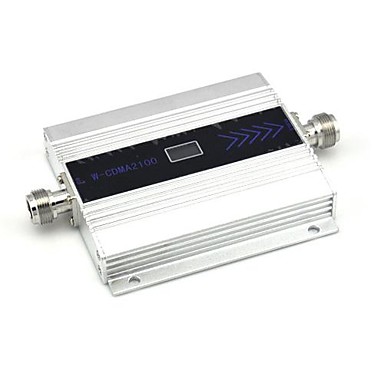

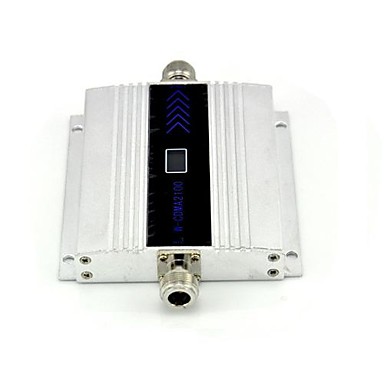

Mini 3G W-CDMA 2100Mhz Mobile Phone Signal Booster
+ Outdoor Antenna With 10 Meters Cable
+ Indoor Antenna

Display device (for reference)
The external power supply detecting normal display —-OK.
Internal power supply detecting normal display —-OK.
MMIC circuit detects normal display —-OK.
-50dbm signal input and detection to achieve full displayed—-OK.

Technique Specifications:
Item Specification
Frequency Range:
Up Link: 1920MHz–1990MHz
Donw Link: 2110MHz–2180MHz
Power: -70 ~ -40dBm/FA (1.23MHz)
Gain:
Up Link: 55Db ±3db
Donw Link: 60Db ±3db
Max Output Power :+17dBm/ ±3DBM Total Power
Impedance: 50Ω
Power Supply: AC 110/220V (used AC/DC Adapter 5V dc)
Seclusion :>70dB
Compact Design: Indoor Use
Item Diemension: 130 x 100 x 20mm
Connect Mode :N connector
Ambient temperature: -10°C~60°C

Package included:
1 x W-CDMA 2100MHz signal repeater.

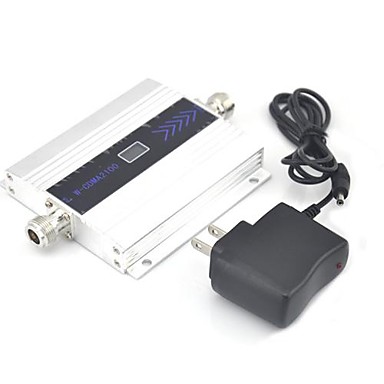

1 x Power adapter
1 x Manual

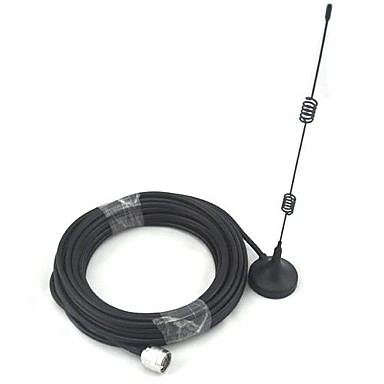

1 x Outdoor antenna with 10 meters cable
1 x Indoor Antenna
