Specifications

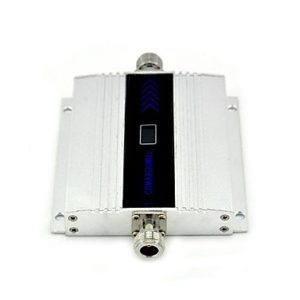

Repeater
Frequency range (Mhz) UL824-849mhz DL869-894mhz
Gain (dB) Up Link: 55Db ±3db,Donw Link: 60Db ±3db
Output Power (Bm) +17dBm/±3dBm
RF Connector N -Female
Coverage area (M) 100 square meters
I/O impedence (Ω) 50 Ω
Environment Conditions -10oC-50oC
Power Supply DC 5V
Dimensions (LxWxH) (CM) 14x10x2
Gross Weight (KG) 0.4

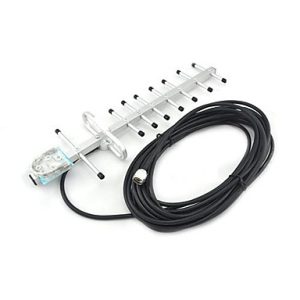

Outdoor Antenna
Usage type Yagi Antenna
Frequency range (Mhz) 800-900mhz
Gain (dB) 13dbi
Impedance(Ω) 50
Connector Type N Female
Operating Temperature -40 to +65°C
Dimensions (LxWxH) (CM) 50x14x7
Gross Weight (KG) 0.8

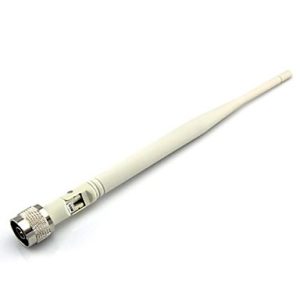

Indoor Antenna
Usage type Omni Antenna
Frequency range (Mhz) 800-900mhz
Gain (dB) 4dbi
Impedance(Ω) 50
Dimensions (LxWxH) (CM) 21x2x2
Gross Weight (KG) 0.05
Cable
Impedance(Ω) 75ohm
Material Plastic
Length (FT) 32.8
Gross Weight (KG) 0.5
General
What’s in the box 1 x User Manual – English, 1* Power Supply, 1 x Cable, 1 x Indoor Antenna, 1 x Outdoor Antenna, 1 x Mobile Signal Repeater
