Specifications

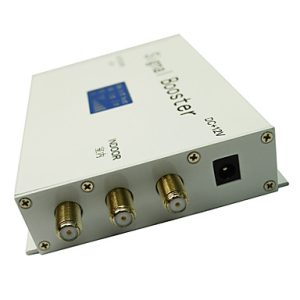

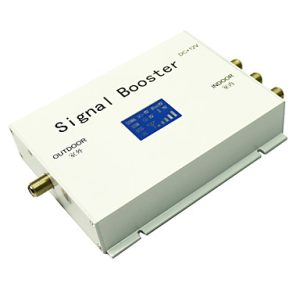

Repeater
Frequency range (Mhz) UL1920-1980mhz DL2110-2170mhz
Gain (dB) Uplink≥65?Downlink≥70
Bandwidth 60Mhz
Ripple in Band ≤8dB
Output Power (Bm) ≥24dBm±3dBm
Noise figure (dB) 4.5db
Transmission delay (μs) ≤0.5 μs
Coverage area (M) 100-1000?
I/O impedence (Ω) 50 Ω
Installation Type Wall Installation
Environment Conditions -10oC-50oC
Power Supply DC 12V
Dimensions (LxWxH) (CM) 16*10.5*2.8
Gross Weight (KG) 0.395
Outdoor Antenna
Lightning protection DC grounded
Operating Temperature -40 to +65°C
Gross Weight (KG) 0.82
Indoor Antenna
Usage type Whip Antenna
Lightning protection DC grounded
Operating Temperature -40 to +65°C
Dimensions (LxWxH) (CM) 20.3*1.3*1.3
Gross Weight (KG) 0.06
Cable
Impedance(Ω) 75ohm
Material Plastic
Length (FT) 32.8
Gross Weight (KG) 0.38
General
What’s in the box 1 x Indoor Antenna, 1 x Outdoor Antenna, 1 x Mobile Signal Repeater, 1 x User Manual – English, 1* Power Supply, 1 x Cable
