Specifications

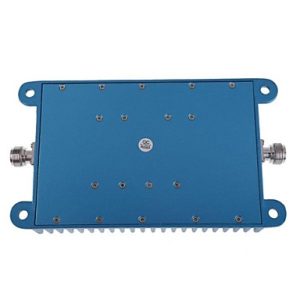

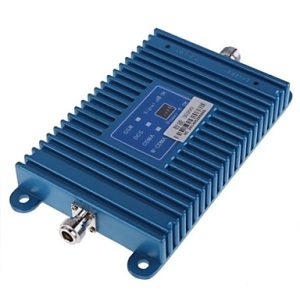

Repeater
Frequency range (Mhz) UL1920-1980mhz DL2110-2170mhz
Gain (dB) Uplink≥60?Downlink≥65
Output Power (Bm) ≥25dBm±3dBm
Noise figure (dB) 4.5db
Transmission delay (μs) ≤0.5 μs
RF Connector N -Female
Coverage area (M) 200-800?
I/O impedence (Ω) 50 Ω
Environment Conditions -10oC-50oC
Power Supply DC 12V
Dimensions (LxWxH) (CM) 19*11*2.5

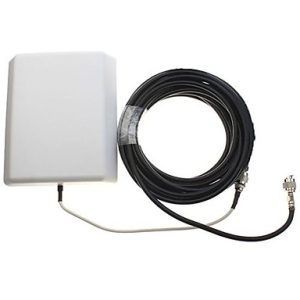

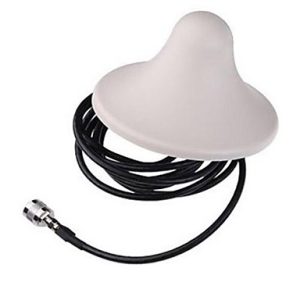

Indoor Antenna
Usage type Omni Antenna
Gain (dB) 3-5
Cable
Impedance(Ω) 50ohm
Length (FT) 50
General
What’s in the box 1 x Mobile Signal Repeater, 1 x User Manual – English, 1* Power Supply, 1 x Cable, 1 x Indoor Antenna, 1 x Outdoor Antenna
