Specifications

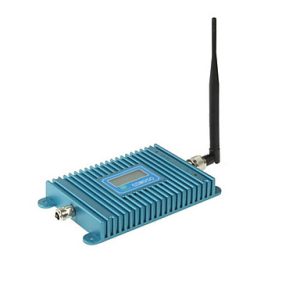

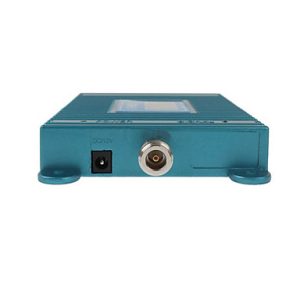

Repeater
Frequency range (Mhz) CDMA/PCS 824-849/869-894MHz 1850-1910/1930-1990mhz
Gain (dB) Up:65 Down:70
Ripple in Band ≤8dB
Output Power (Bm) ≥20
Noise figure (dB) 8dB
Return loss ≤-8 dB
I/O impedence (Ω) 50 Ω
Environment Conditions -10oC-50oC
Dimensions (LxWxH) (CM) 19*12.5*2.5
Gross Weight (KG) 0.58kg

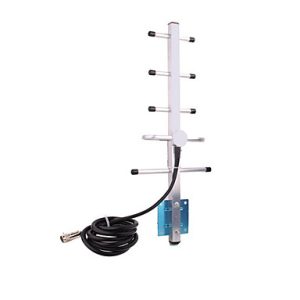

Outdoor Antenna
Gain (dB) 11dB
Indoor Antenna
Gain (dB) 3dB
Cable
Length (FT) 10m
General
What’s in the box 1 x Outdoor Antenna, 1 x Mobile Signal Repeater, 1 x User Manual – English, 1* Power Supply, 1 x Cable, 1 x Indoor Antenna
