Specifications

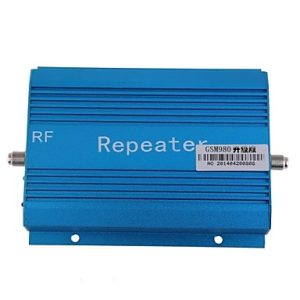

Repeater
Frequency range (Mhz) UL 890-915Mhz DL 935-960Mhz
Gain (dB) Uplink≥60; Downlink≥65
Output Power (Bm) ≥27dBm±3
Transmission delay (μs) ≤0.5 μs
Coverage area (M) 100 square meters
I/O impedence (Ω) 50 Ω
Environment Conditions -10oC-50oC
Power Supply DC 12V
Dimensions (LxWxH) (CM) 17.3*10.2*2.3

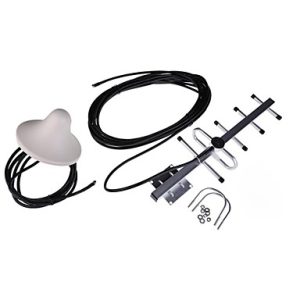

Outdoor Antenna
Usage type Yagi Antenna
Gain (dB) 9dB
Impedance(Ω) 50
Operating Temperature -40 to +65°C
Indoor Antenna
Usage type Omni Antenna
Gain (dB) 5dB
Operating Temperature -40 to +65°C
Cable
Impedance(Ω) 75ohm
Length (FT) 32.8
General
What’s in the box 1 x Mobile Signal Repeater, 1 x User Manual – English, 1* Power Supply, 1 x Cable, 1 x Indoor Antenna, 1 x Outdoor Antenna
