Specifications

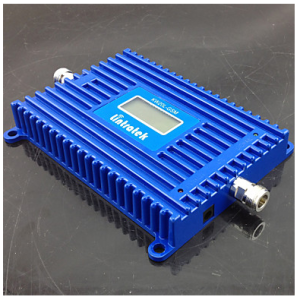

Repeater
Frequency range (Mhz) UL 890-915Mhz DL 935-960Mhz
Gain (dB) 70db
Bandwidth 25M
Ripple in Band ≤8dB
Output Power (Bm) 20dbm
RF Connector N -Female
Coverage area (M) 300~500 sqm
I/O impedence (Ω) 50 Ω
Installation Type Wall Installation
Environment Conditions -10oC-50oC
Power Supply DC 5V
Dimensions (LxWxH) (CM) 20*12*3
Gross Weight (KG) 0.9kg
Outdoor Antenna
Usage type LAP Antenna
Frequency range (Mhz) 800-900mhz
Gain (dB) 10db
3dB beamwidth, H-plane (°) 60
3dB beamwidth, E-plane (°) 60
Connector Type N Female
Radome material Plastic
Dimensions (LxWxH) (CM) 33*22*7
Gross Weight (KG) 0.8kg
Indoor Antenna
Usage type Omni Antenna
Frequency range (Mhz) 800-900mhz
Gain (dB) 3dbi
3dB beamwidth, H-plane (°) 360
3dB beamwidth, E-plane (°) 360
Radome material Plastic
Dimensions (LxWxH) (CM) 18*9
Gross Weight (KG) 0.3kg
Cable
Impedance(Ω) 50ohm
Material Plastic
Length (FT) 10m
Gross Weight (KG) 0.6kg
General

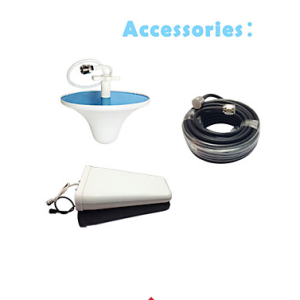

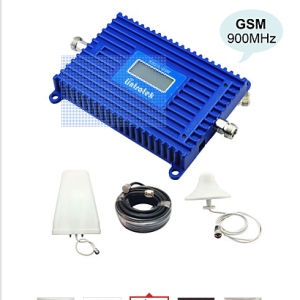

What’s in the box 1* Power Supply, 1 x Cable, 1 x Indoor Antenna, 1 x Outdoor Antenna, 1 x Mobile Signal Repeater, 1 x User Manual – English
