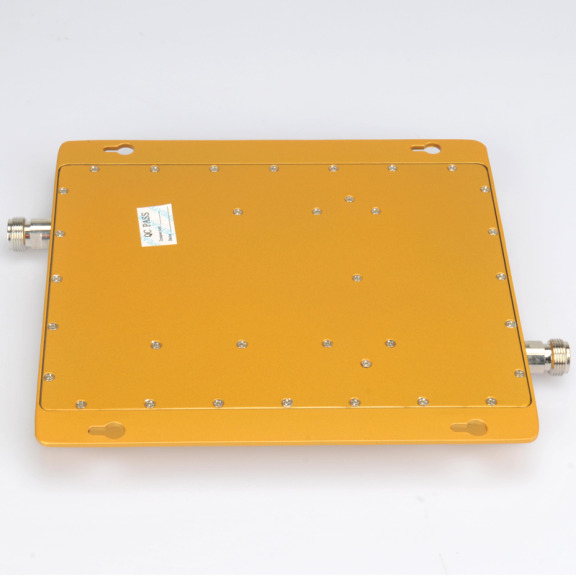

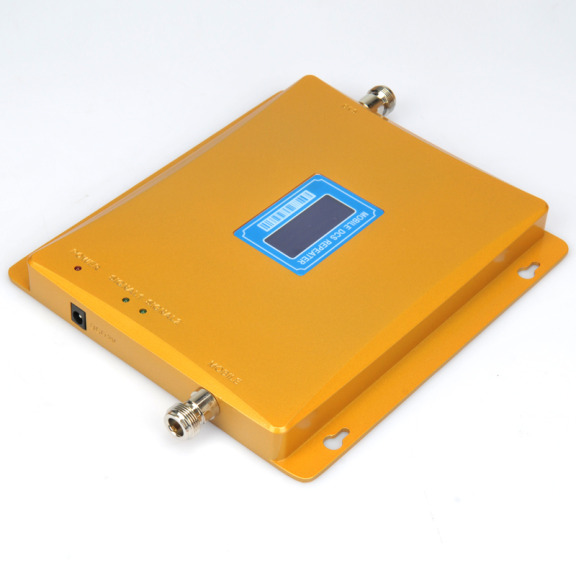

DCS1800mhz signal booster DCS signal repeater
dual band repeater gsm parameter data :
|Gain||65 ±2 dB||65±2dB|
|Ripple in Band||≤5dB|
|Spurious Emission||9KHz~1GHz||≤ -36 dBm|
|1GHz~12.75GHz||≤ -30 dBm|
|Power Supply||AC:100~240V, 50/ 60Hz;DC:12V 2A|
|Power Consumption||< 5W|
|RF Connector||N-Female N|
|Dimensions (D*W*H )||198*182*20(mm)|
|Installation Type||Wall Installation|
|Operating Temperature||-10°C ~ 55°C|
Why we should buy mobile signal repeater/ signal booster/ DCS amplifier :
Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody’s life.
Unfortunately, there are still some places where one can find themselves “out of coverage”. Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:
How is mobile phone signal repeater GSM/DCS/ 2G/3G/4G WORKING ?
amplifier through the connection cable (coax).

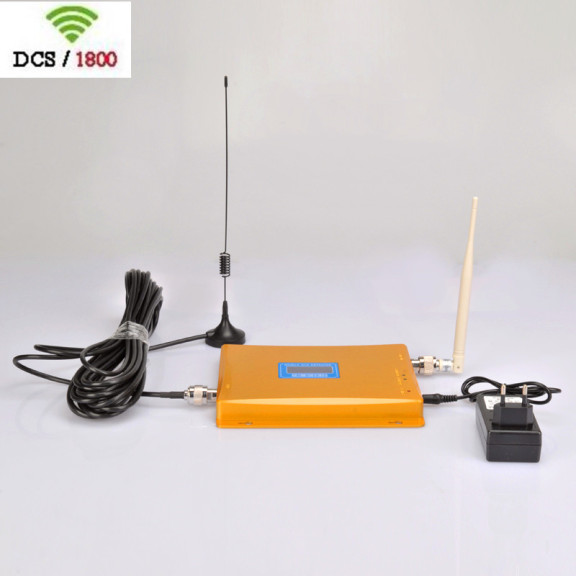

A regular repeater DCS 1800 MHZ consists of:
5dB outdoor antenna
3dB indoor antenna
RG6-50 OHM outdoor Coaxial Cable-10m
AC power supply
|Whole Package Weight||1.6KG|
|Whole Package Size||310x230x110mm(L x W x D)|
Features of mobile phone signal amplifier
B . ALC and AGC function technology ,
Signal repeater Installation diagram (very convenient and easy to install)
How should you install repeater (very easy and simple):
Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).
Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.
Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.
step 4: Mount your indoor antenna with signal repeater
step5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.
Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.
Indoor and outdoor antenna must be separated by wall.
After- Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
