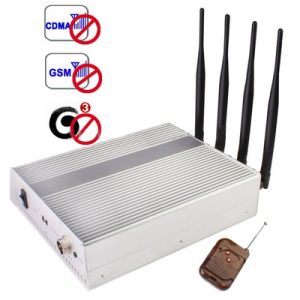

Adjustable Remote control 3G desktop Jamming


model number 8276

Description

Adjustable Remote control 3G desktop Jamming

Specification
Output Band Frequency Band Average Output Power Channel Output Power
CDMA800 850-894MHz 35dBm 3 watt
GSM900 925-960MHz 35dBm 3 watt
DCS/PHS/GSM1800-1900 1805-1990MHz 32dBm 2 watt
3G 2110-2170MHz 32dBm 2 watt
Total Power 10 watt
Power Supply AC:110/220 V   DC 5V,  Electric Current: 6A
Power Consumption 25 watt
Shielding Radius Up to 40 meters, signal strength <= -75dbm
Device Weight 1.75 KG
Packing weight 2.8Kg
Size 21.5*17*5.5 CM
Complete accessories Four antennas, Power cable, Remote control, Fixed Mount
 Advantages and Features
  1. With knobs to control all the bands. They can be controlled separately and simultaneously.
  2. Output power of each channel is adjustable.
  3. Remote control to turn on/off the jammer.
  4. GPS or WIFI frequency bands optional as required

5.Smart cooling system make it work 24-7 continuously.

Applications Meeting Room,  Hospitals, Theatres, Recording Studios, Banks, Contract Tendering Rooms, Churches, Conference Rooms, Classrooms, Testing Facilities, Security Services, Secret Services, Libraries, Museums, Prisons,
  1. Before turn on the power, Connect the antennae to the corresponding bands firstly.



  1. ON/OFF the Jammer
  2. Remote control to ON/OFF the device as below picture.
  3. Manually Control the ON/OFF of the Device like this .





  1. The output power can be adjustable and ON/OFF by this knob.







Notes



1) The shielding range of the device will be determined by the local signal strength. In different situation, it will be with different performance.

2) Please try to put the device in a higher position while it is working .It will be better. The suggested height is about 2M.  To avoid the loss of function of the device, please try to avoid the device placed on or the metal materials.

3) Do not put the device near computers, notebook computers, televisions, stereos, radios and so on, in order not to make some interference for these equipments.

4) Try to put the jammer away from metal materials to make sure the working condition won’t be affected.
