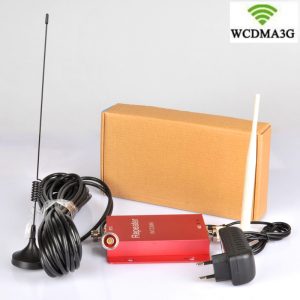

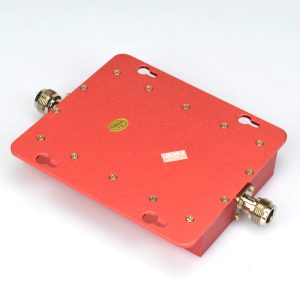

- 2100mhz signal booster WCDMA signal repeater
|Ripple in Band||≤5dB|
|Spurious Emission||9KHz~1GHz||≤-36 dBm|
|Power Supply||AC:100~240V, 50/ 60Hz;DC:5V 2A|
|Power Consumption||< 5W|
|RF Connector||N-Female N|
|Dimensions (D*W*H )||125*110*20(mm)|
|Installation Type||Wall Installation|
Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody’s life.Unfortunately, there are still some places where one can find themselves “out of coverage”Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:
|Whole Package Weight||1.6KG|
|Whole Package Size||510x200x150mm(L x W x D)|
Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).
Step 2: Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.
Step 3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.
step 4: Mount your indoor antenna with signal repeater.
step5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.
Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.
Indoor and outdoor antenna must be separated by wall.
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3.If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4.Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
● Class rooms and small seminar halls
● Small Meeting rooms and board rooms
● Private offices
● Army authorities.
● Police authorities.
● Bus and vehicles
● VIP and privacy-sensitive scenarios’etc
